What Started as a Snapped Key Was a Bigger Lock Problem
This recent job took us to a home in the Codsall area of Wolverhampton after a key snapped inside a uPVC door lock. At first, it appeared to be a straightforward broken key extraction, but the condition of the door suggested there was more going on behind the visible lock.
The customer explained that the key had been getting harder to turn and the handle had felt stiff for some time. That information was important because keys rarely snap without a reason. In many cases, the broken key is the final symptom of a lock or door mechanism that has already been working under strain.
Once the lock was inspected, the underlying fault became clear. The internal gearbox had become stiff and worn, while the cylinder had also suffered damage. Continuing to force the key would not have provided a reliable repair and could have left the door unable to lock at all.
The correct solution was to remove the damaged parts, replace the failed gearbox and fit a suitable replacement cylinder before testing the full locking system.
The important point: The snapped key was not the main fault. It was the result of a stiff locking mechanism that had become increasingly difficult to operate. Removing the broken key without addressing the gearbox would only have left the original problem in place.
Why the Key Snapped Inside the Lock
A key should turn smoothly when the cylinder and door mechanism are working correctly. Some resistance can occur as locks age, but needing to wiggle the key, lift the handle harder or apply extra pressure is usually a warning sign.
On a uPVC door, the key cylinder, handle, gearbox and multipoint locking strip all work together. When the handle is lifted, the gearbox moves the locking points into position. The key then secures the system.
If the gearbox begins to seize, more force is transferred through the key. The metal key can gradually weaken, particularly if it is already worn or slightly bent. Eventually, the key may snap while the user is trying to overcome the resistance inside the lock.
This is why proper lock repair services should investigate why the key broke rather than only removing the broken section.
Inspecting the Door Before Replacing Parts
Before deciding on a repair, the full door needed checking. A failed gearbox can sometimes be caused by age and internal wear, but it can also be damaged by poor door alignment.
If the door has dropped slightly on its hinges, the hooks, rollers or bolts may no longer line up cleanly with the keeps in the frame. The handle can then feel unusually heavy because the mechanism is trying to force the locking points into positions they no longer meet correctly.
That distinction matters. Fitting a new gearbox without checking the door could place the replacement part under the same strain that damaged the original one.
On this job, the door and locking points were checked before the new parts were fitted. Once the replacement gearbox and cylinder were installed, the door was tested open and closed to confirm that the mechanism moved smoothly and secured properly.

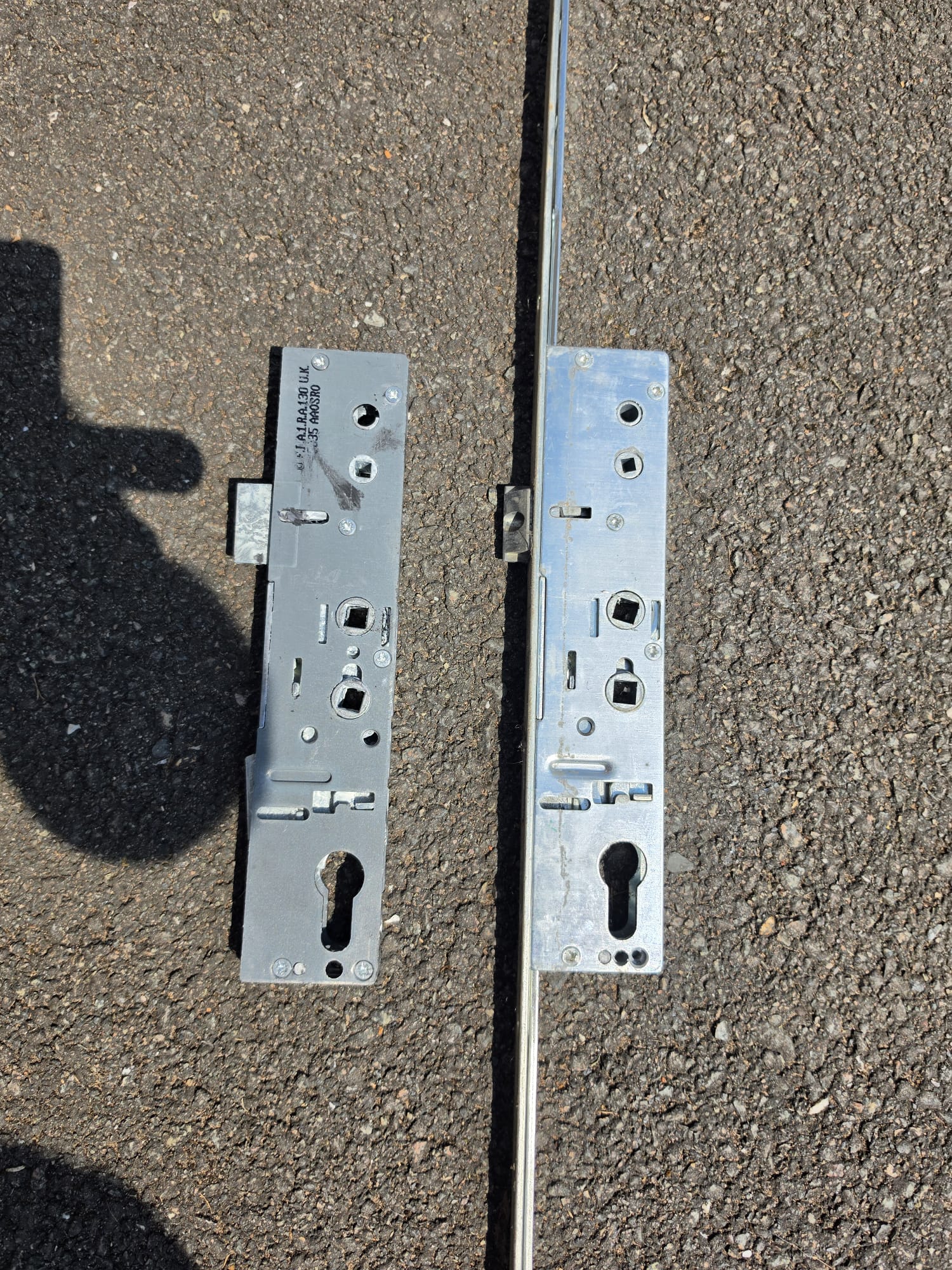

Why the Gearbox Needed Replacing
The gearbox is the central working part of many uPVC multipoint locks. It sits inside the door and transfers movement from the handle to the hooks, rollers or bolts fitted along the locking strip.
Once a gearbox becomes badly worn or starts failing internally, it may no longer be practical or reliable to repair the individual components inside it. A replacement gearbox restores the movement between the handle and locking strip using a sound mechanism designed to operate smoothly.
In this case, fitting the replacement gearbox was the sensible option because the original part had become too stiff to provide dependable operation. Leaving it in place would have created a continued risk of another snapped key, a jammed handle or a door that could not be secured.
The replacement allowed the existing door to remain in use, avoiding the unnecessary cost and disruption of replacing the complete door.
Replacing the Faulty Parts Rather Than the Whole Door
A failed uPVC door mechanism can feel like a major problem, especially when the door will no longer lock. However, the complete door often does not need replacing.
Where the frame, door panel and locking strip remain in suitable condition, replacing the damaged gearbox and cylinder can restore reliable operation at a much lower cost than fitting a new door.
The repair should always be based on the condition of the full system rather than replacing parts unnecessarily.
New and Replacement LocksWhy the Lock Cylinder Was Replaced as Well
The cylinder is the part of the lock where the key is inserted. Although it is separate from the gearbox, the two parts work together every time the door is locked or opened.

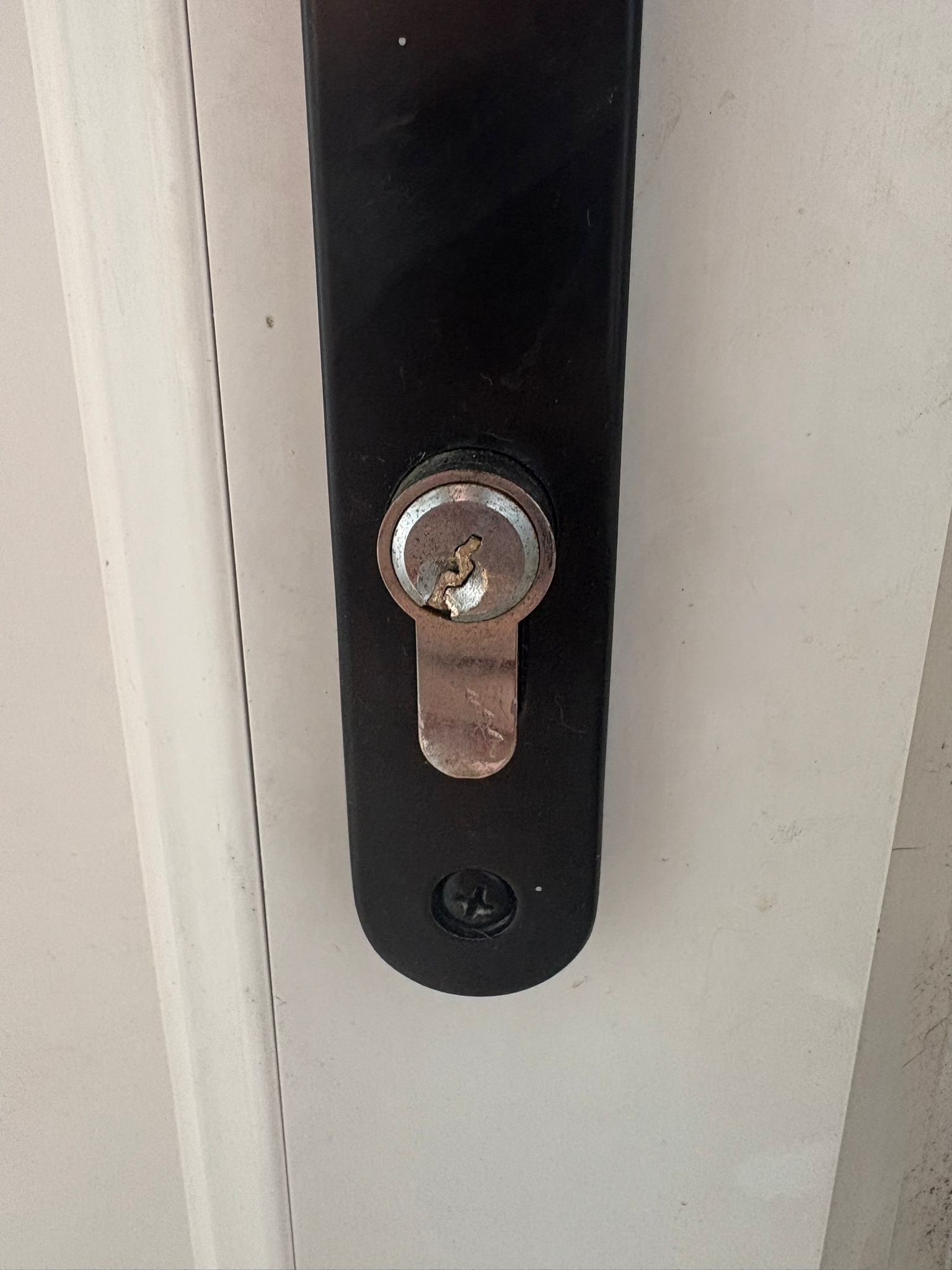

After a key has snapped inside a worn cylinder, it is important to check for internal damage. Simply extracting the broken section may not leave the cylinder operating reliably, particularly if it was already stiff before the key broke.

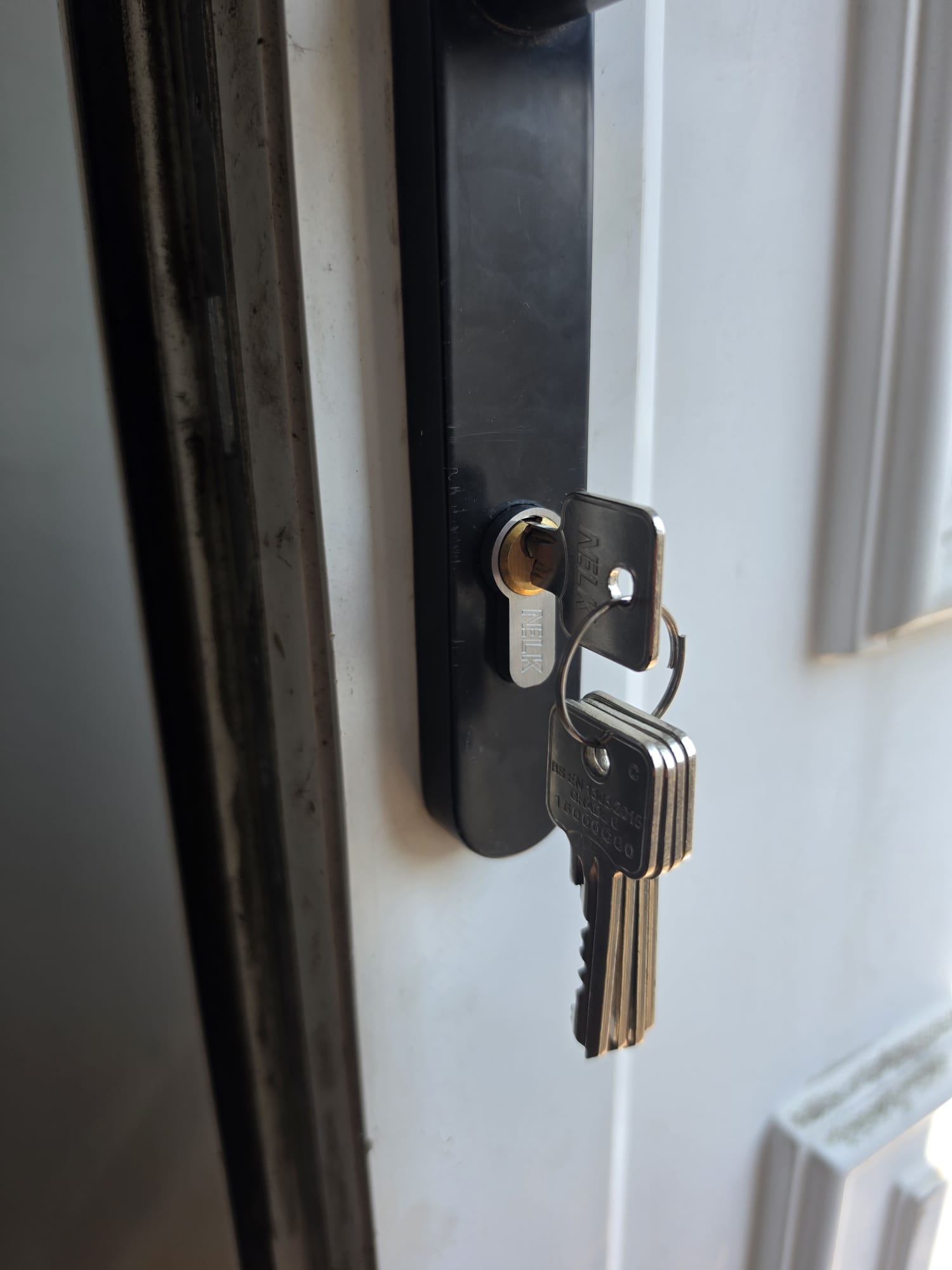

On this repair, replacing the cylinder removed the damaged component and provided the customer with a new set of keys. The finished lock was then checked from both sides of the door to confirm smooth operation.
A properly fitted replacement cylinder should sit correctly within the door furniture and turn without needing unnecessary pressure.
Warning Signs That Should Not Be Ignored
A snapped key may happen suddenly, but the lock often gives earlier warnings. A key becoming difficult to turn is one of the clearest signs that something inside the cylinder or mechanism is not operating correctly.
A heavy handle is another common warning. If the handle needs extra force, the door may be out of alignment or the gearbox may be wearing internally.
Some homeowners also notice that the door only locks when it is pulled towards them, pushed firmly into the frame or lifted slightly. That often points towards an alignment issue that is placing pressure on the multipoint locking system.
Grinding, clicking or a handle that does not return normally should also be investigated. Continuing to force the mechanism can turn a manageable repair into a complete failure with the door stuck open or closed.
Is Your Key or Door Lock Becoming Stiff?
A lock that needs extra pressure is usually giving a warning. Having the door checked before the key snaps or the gearbox fails can reduce the chance of being left unable to secure the property.
Local Lock and Gearbox Repairs in Codsall
This job was completed in the Codsall area of Wolverhampton and is a good example of why a broken key should not always be treated as an isolated problem.
JR Locksmiths regularly helps homeowners requiring locksmith support in Codsall with snapped keys, failed gearboxes, stiff door mechanisms, damaged cylinders and doors that no longer lock correctly.
Similar uPVC and composite door faults are also repaired across Wolverhampton, Tettenhall, Bilbrook, Pendeford, Penn and nearby areas.
All replacement parts supplied and fitted by JR Locksmiths are covered by a 12 month warranty, providing added reassurance after the work has been completed.
Frequently Asked Questions
Why did my key snap inside the lock?
Keys commonly snap because the cylinder or door mechanism has become stiff. Repeatedly applying extra pressure can weaken the key until it breaks.
Can the broken key simply be removed?
Sometimes it can, but the lock should still be checked to identify why the key snapped. If the gearbox or cylinder remains faulty, another key may break or the door may fail completely.
Does a failed gearbox mean I need a new door?
Usually not. If the door and frame remain in suitable condition, the faulty gearbox can often be replaced without changing the complete door.
Why does my door only lock when I pull or push it?
This often means the door is out of alignment and the locking points are not meeting the keeps correctly. The extra resistance can place strain on the gearbox.
Are replacement parts covered by a warranty?
Yes. Replacement parts supplied and fitted by JR Locksmiths are covered by a 12 month warranty.
Snapped Key? Don't Ignore the Underlying Problem
A snapped key is often the final warning that something inside the locking mechanism isn't working as it should. Whether it's a worn gearbox, damaged cylinder or a door that's become difficult to align, identifying the cause early can help prevent a complete lock failure and restore smooth, secure operation.
