A Failed Gearbox Can Stop A uPVC Door Locking Properly
This recent job took us to Aldersley in Wolverhampton, where a homeowner had a uPVC door that would no longer lock correctly.
The door had been rubbing on the frame for several months, which meant the locking mechanism had been working under strain every time the handle was lifted. Eventually, the internal gearbox failed and the locking points could no longer operate properly.
This is a common problem with uPVC and composite doors. The lock cylinder is the part most people see, but the gearbox inside the door is what transfers the movement from the handle into the multi point locking system.
When that gearbox fails, the door may become stiff, the handle may not lift fully, or the key may no longer lock the door securely.
What happened on this job: The failed uPVC gearbox was replaced, the door alignment was corrected, and the locking system was tested so the homeowner could secure the property properly again.
Why The Door Had Stopped Locking
When we inspected the door, it was clear that the lock problem was not just a simple cylinder fault. The door had been catching against the frame, which had placed extra pressure on the mechanism over time.
On a correctly aligned uPVC door, the locking points should move smoothly into the keeps when the handle is lifted. If the door has dropped or started rubbing, the locking points can scrape or bind against the frame.
That extra resistance often gets passed through the handle and into the gearbox. The homeowner may only notice the handle becoming slightly heavier at first, but over time the internal parts can wear or fail completely.
This is why proper lock repair services should always look at the door as well as the visible lock.

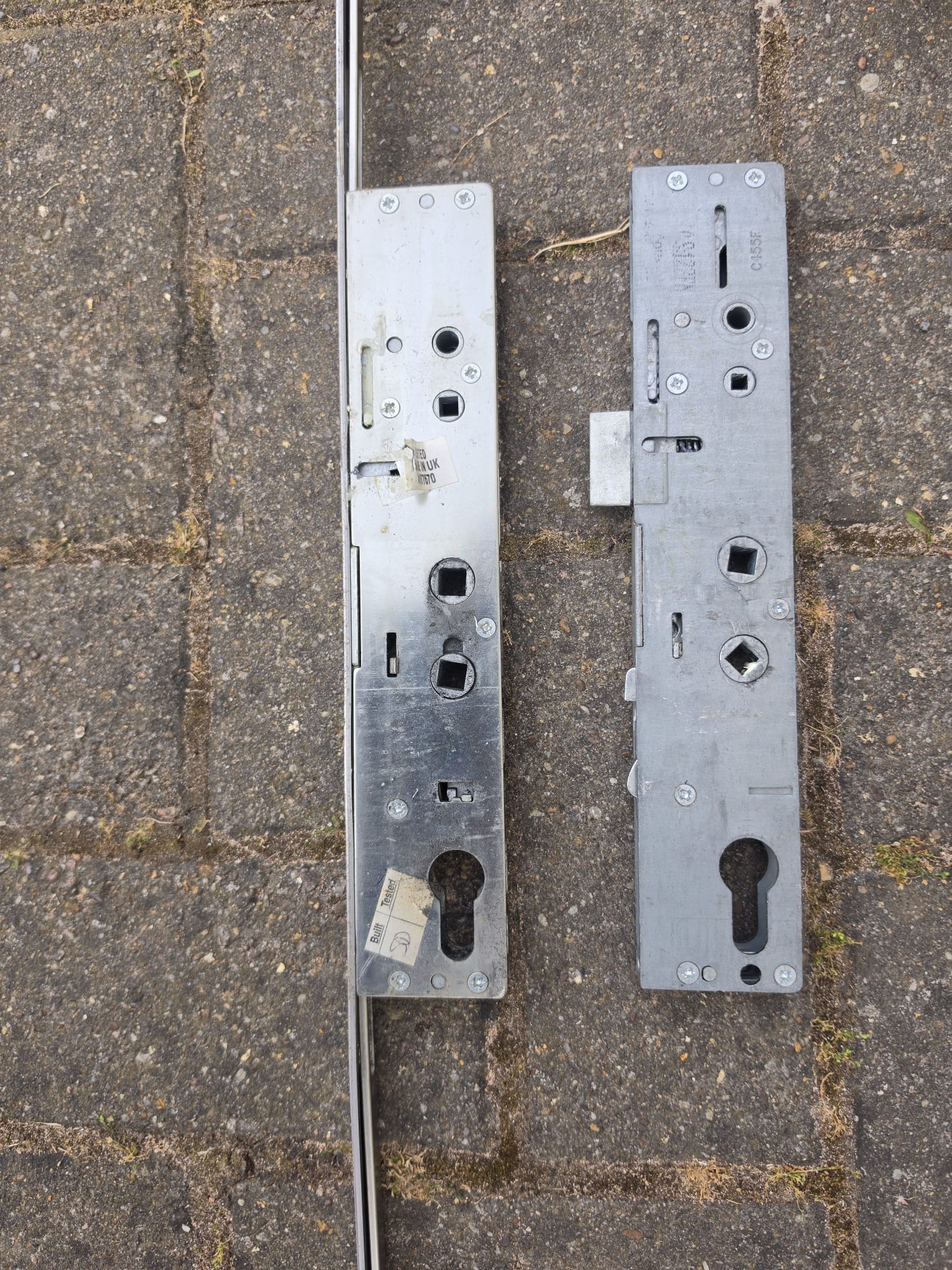

Why Replacing The Gearbox Was The Right Repair
In this case, the rest of the door was still usable. The frame, handles and locking strip were checked, and the failed gearbox was the main part preventing the lock from working correctly.
Replacing the gearbox meant the homeowner avoided the cost of a complete new door while still restoring the locking system properly.
Once the new gearbox was fitted and the door was adjusted, the mechanism operated smoothly again and the property could be secured as it should be.
New And Replacement LocksWhy Door Alignment Matters
Door alignment is one of the most common reasons a uPVC lock starts to fail. The lock may seem like the problem, but the door itself is often placing the mechanism under unnecessary strain.
If a door has been rubbing against the frame, the homeowner might start lifting the handle harder or pulling the door towards them before turning the key. This can make the door lock for a while, but it does not fix the underlying issue.
Every time the handle is forced, the gearbox, locking strip and keeps are put under more pressure. Eventually, something gives way.
In this case, the gearbox replacement was only part of the job. Adjusting the hinges and keeps helped remove the strain that had contributed to the fault in the first place.
• • •
Is Your uPVC Door Becoming Harder To Lock?
If the handle feels stiff, the key is difficult to turn or the door needs pulling before it locks, it is worth having the mechanism checked before it fails completely.

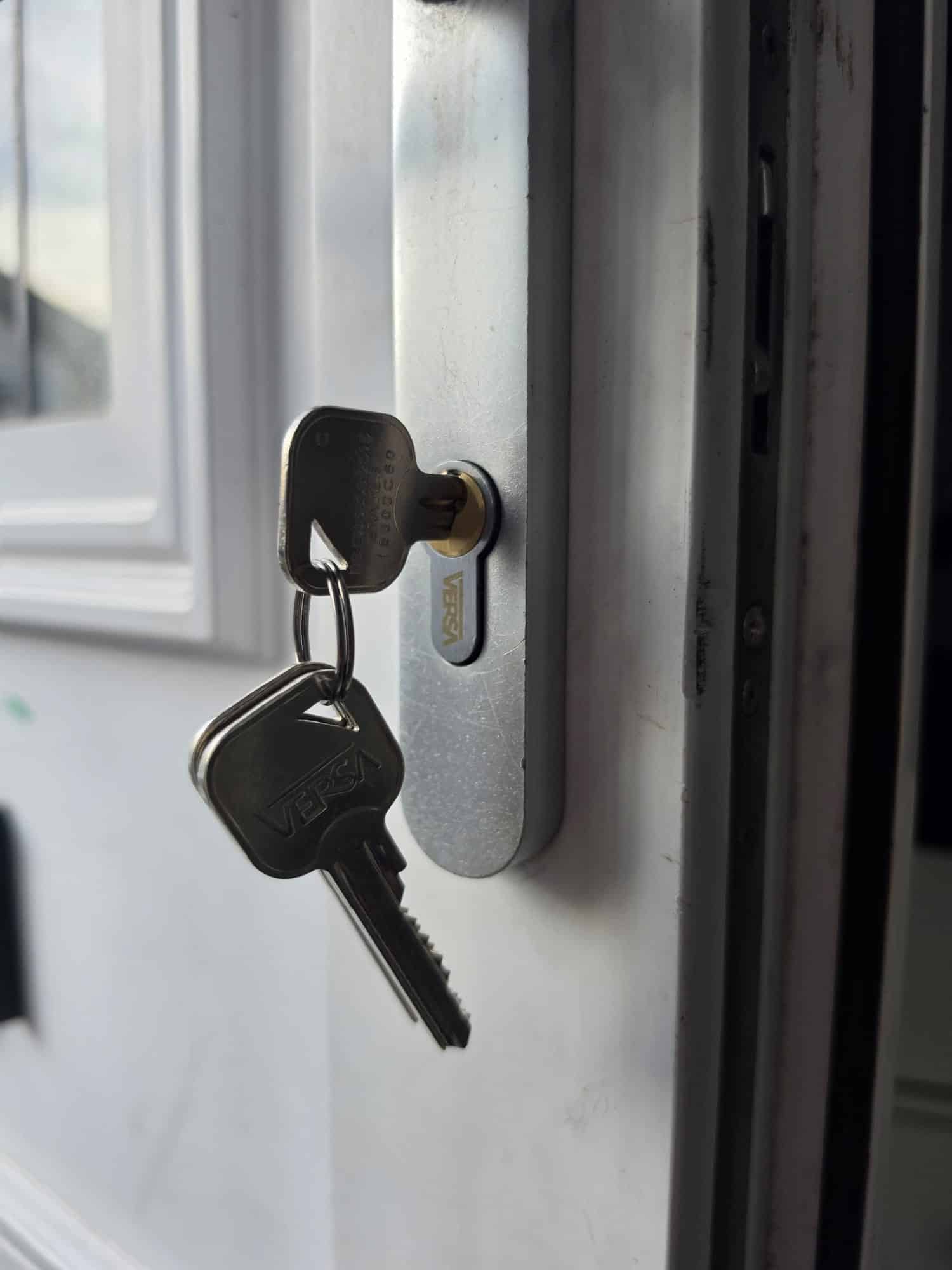

Why The Lock Cylinder Was Checked Too
Although the gearbox was the failed part, it was still important to check the lock cylinder and the rest of the door hardware.
The cylinder is the part the key enters, but it works alongside the handle and gearbox. If one part is worn or poorly fitted, it can make the whole system feel unreliable.
After the gearbox was replaced, the door was tested several times from both sides to make sure the handle lifted correctly, the key turned smoothly and the locking points engaged properly.
This matters because a repair should not just make the door work once. It should leave the door operating safely and reliably for normal daily use.
Why This Repair Is Safer Than Forcing The Lock
When a uPVC door becomes difficult to lock, it can be tempting to keep lifting the handle harder until the key turns. That may seem to work in the short term, but it usually makes the problem worse.
A failed or strained gearbox can leave the door partially locked, difficult to open or unable to secure properly. In some cases, the mechanism can jam with the door shut, which makes the repair more involved.
By replacing the faulty gearbox and adjusting the door, the locking points were able to move into position without force. That is safer for the door, safer for the mechanism and safer for the homeowner.
For homeowners looking for locksmith support across Wolverhampton , the aim is always to repair the fault properly rather than masking the symptoms.
Parts Warranty
All replacement parts supplied and fitted by JR Locksmiths are covered by a 12 month warranty, giving customers added peace of mind after the repair has been completed.
Signs Your uPVC Door Gearbox May Be Failing
Gearbox problems often develop gradually. The first sign is usually a handle that feels heavier than normal or a key that does not turn as smoothly as it used to.
You may also notice that the door only locks if you pull it towards you, lift the handle with extra force or push the door tightly into the frame.
Other warning signs include a dropped handle, a grinding feeling inside the mechanism, a door that locks while open but not when closed, or a key that turns without the locking points engaging properly.
These are all signs that the mechanism should be checked before the door fails completely.
uPVC Door Repairs Across Aldersley And Wolverhampton
This job was completed in Aldersley, Wolverhampton, but the same type of fault is common across many local homes with uPVC and composite doors.
JR Locksmiths regularly carries out uPVC door repairs, gearbox replacements and door adjustments for homeowners needing locksmith support in Aldersley , as well as nearby areas such as Tettenhall, Codsall, Pendeford, Claregate, Compton, Perton, Bilbrook and across Wolverhampton.
In many cases, a failed mechanism can be repaired without replacing the complete door. The key is checking whether the door, frame and locking strip are still suitable before deciding on the right repair.
Frequently Asked Questions
What does a uPVC door gearbox do?
The gearbox sits inside the door and transfers movement from the handle to the multi point locking system. When it fails, the handle or locking points may stop working correctly.
Can a failed gearbox be replaced without changing the whole door?
Yes, in many cases the gearbox can be replaced without fitting a new door, provided the door, frame and locking strip are still in suitable condition.
Why does my uPVC door only lock when I pull it towards me?
This is often a sign that the door is out of alignment. The locking points may not be lining up correctly with the keeps, which can put strain on the mechanism.
Is a stiff uPVC door lock a warning sign?
Yes. A stiff handle or key can be an early warning that the door, gearbox or locking mechanism is under strain and should be checked before it fails completely.
Need Help With a Faulty uPVC Door?
A stiff handle, a door that won't lock properly or a failed gearbox doesn't always mean you need a new door. In many cases, replacing the faulty mechanism and correctly adjusting the door is enough to restore smooth, reliable operation while helping to keep your home secure.
JR Locksmiths provides professional lock repair services, new and replacement locks and reliable locksmith support in Aldersley, as well as across Wolverhampton and the surrounding areas.
